Robe Spikie LED WashBeam

Description

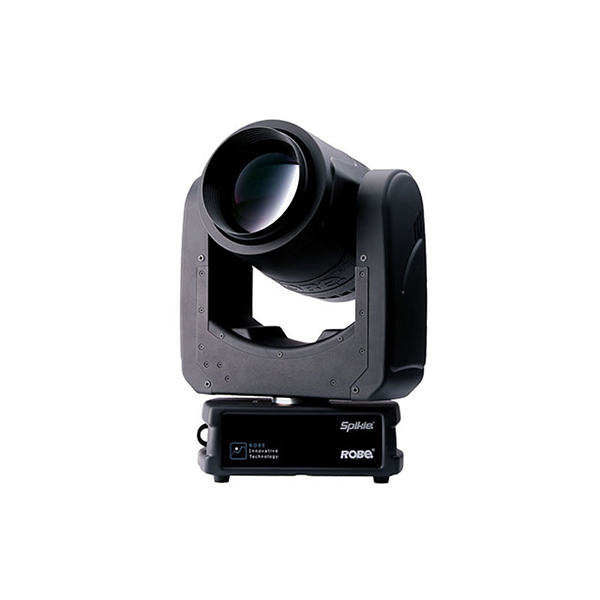

Robe Spikie LED WashBeam, a small, super fast LED WashBeam, which utilises a single 60W RGBW light source with a specially designed 110mm wide front lens producing a solid beam. The fixture quickly zooms from a soft wide 28° wash to a tight sharp-edged 4° beam or one of two new stunning air effects.

Robe patented MCFE™ – Multi-Coloured Flower Effects, creates sharp multicoloured spikes of light, rotating in both directions at variable speed. Additionally, a unique Beam Effect Engine transforms the output into a dynamic ray of three narrow beams, creating another new visual effect to the show.

The Robe Spikie LED WashBeam utilises continuous rotation of pan and tilt, as a result gives many new and dynamic elements across the stage. The Robe Spikie LED WashBeam is a very compact 7.3 kg fixture, and as a result can be hung in any position.

To see the other Robe Moving Heads we stock please click here

Technical Information –

• Light source: 60W RGBW LED
• Robe’s proprietary optical design
• High – efficiency zoom optical system, ratio 7:1
• Zoom range: 4° – 28°
• Output lens diameter: 110 mm
• Fixture total lumen output: 920 lm
• Light output: 9.270 lx @ 5m
• Colour mixing mode RGBW or CMY
• Variable CTO: 2.700K – 8.000K
• Virtual Colour Wheel: with 66 preset swatches
• Tungsten lamp effect at whites: 2.700 K and 3.200 K (red shift and thermal delay)
• Colour rainbow effect with variable speed
• MCFE™ – Multi-Coloured Flower Effects – creating spectacular multicolour beam effects in the air rotating in both directions at variable speed (patent pending)
• Prism: 3-facet circular rotating prism
• Motorized zoom
• Shutter: Electronic with variable speed strobe (max.20 flashes per second)
• Pre-programmed random strobe & pulse effects
• High resolution electronic dimming: 0 – 100%
• Setting & Addressing: two-row LCD display & 4 control buttons, stand-alone operation with 3 editable programs (each up to 25 steps)
• Protocols: USITT DMX-512, RDM
• Wireless CRMX™ technology from Lumen Radio
• DMX Protocol modes: 2
• Control channels: 27, 21
• Pan/Tilt resolution: 16 bit
• RGBW or CMY: 8 or 16 bit
• Zoom: 8 or 16 bit
• Dimmer: 8 or 16 bit (internal 18 bit)
• Pan movement range 360° with continuous rotation control
• Tilt movement range 360° with continuous rotation control
• Movement control: Standard and Speed
• Controllable speed of Pan/Tilt movement
• Automatic Pan/Tilt position correction

Manufacturer: Robe
