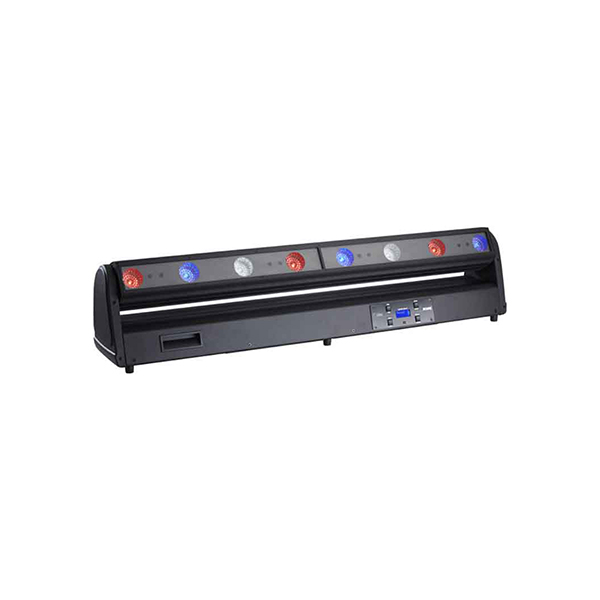

Robe Robin CycFX 8

Description

Robe Robin CycFX 8 has all of the amazing features and performance of the award winning Robe LEDWash luminaires in a 1000 mm moving linear strip.

An array of individually controlled 15W RGBW LED modules equally spaced along the strip with fully adjustable zoom from 8-67 degrees.

The strip itself has a very fast 270 degree tilt movement which can be precision indexed or programmed to produce rapid sweeping movements.

The Robe Robin CycFX 8 has Pre-programmed colour macros and pixel control makes this fixture quick and easy to programme. Tungsten lamp emulation and fade effects at 2700 K and 3200 K are included. Wireless technology CRMX is available as an option.

To see the other Robe Moving Heads we stock please click here

Technical Information

• Light Source: 8x 15W RGBW LED multichips
• High efficient component optics
• Linear motorized zoom: 8° – 67°
• RGBW colour mixing
• Individual control of each RGBW pixel
• Variable CTO
• Virtual colour wheel with pre-programmed 237 colours including whites (2700 K, 3200 K, 4200 K, 5600 K and 8000 K)
• Tungsten lamp effect at whites 2700 K and 3200 K (red shift and thermal delay during dimming)
• Colour rainbow effect with variable speed
• Pre-programmed pixel effects with colour, dimming and strobe chases, waves and pulses at variable speed and directions
• High resolution dimmer 0–100%
• Strobe effect with variable speed (max.20 flashes per second)
• Pre-programmed random strobe & pulse effects
• Motorized zoom
• Tilt movement range: 270°
• Setting & Addressing: two-row LCD display & 4 control buttons
• Protocols: USITT DMX-512, RDM
• Optional wireless version available: CRMX™ technology from Lumen Radio
• Control channels: 14, 21, 45, 53, 22, 53, 61
• 7 DMX protocol modes, including SunStrip emulation mode (halogen strip)
• 1 editable program up to 40 steps
• Stand-alone operation
• Tilt resolution: 8 or 16 bit
• Zoom: 8 or 16bit
• R,G,B,W colours: 8 or 16 bit
• Dimmer: 8 or 16bit
• Data in/out:  Locking 3-pin & 5-pin XLR
• Power in/out: Neutrik PowerCon
• Built-in analyser for easy fault finding

Manufacturer: Robe
