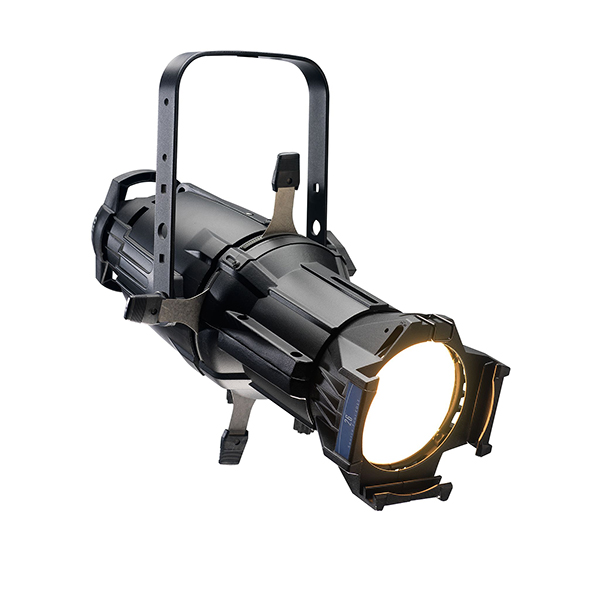

ETC Source Four Profile

Description

No other light offers such optical brilliance. The Source Four Profile’s revolutionary technology gives you a clean white beam for unequaled imaging, crisp pattern projection, and a bright, even field.

ETC Source Four Profile Specifications

Physical

• Die cast aluminium construction
• Rotating shutter assembly ±25°
• Stainless steel shutters in tri-plane assembly
• Interchangeable lens tubes with smooth–running teflon guides
• Thermally insulated rear handle and knobs
• Integral die cast colour frame / accessory holders and top mounted retainer
• Steel yoke with two mounting positions
• Positive locking single clutch luminaire body, double clutch for 5°
• Slot for glass or stainless steel gobos
• Slot with sliding cover for motorised gobo devices or optional iris
• Integrated safety cable support

Electrical

• 230-240V, 50Hz
• High temperature 3–conductor cable in a silicon rubber outer sleeve
• CE approved

Lamp

• 750W maximum
• HPL — compact tungsten filament lamp
• Patented filament geometry makes for extremely efficient light collection and transmission
• Integral die cast aluminium heat sink lamp base

Optical

• 19°, 26°, 50° – projector-quality, high contrast aspheric lens. 36° – meniscus front lens and bi-convex rear lens
• 5° and 10° – light weight acrylic fresnel lens
• Faceted reflector with dichroic coating
• 95% of visible light transmitted through the optical train
• 90% of infrared radiation (heat) passes through the reflector
• Reflector and lenses secured with anti-vibration shock mounts
• Low gate and beam temperature, shutters will not warp or distort
• Tool free lamp centring (X/Y) and peak/flat (Z) adjustment knobs
• Positive locking X, Y and Z adjustments
• Beam edge continually adjustable
• Interchangeable lens tubes permit selection of 5°, 10°, 19°, 26°, 36°, and 50° field angles
