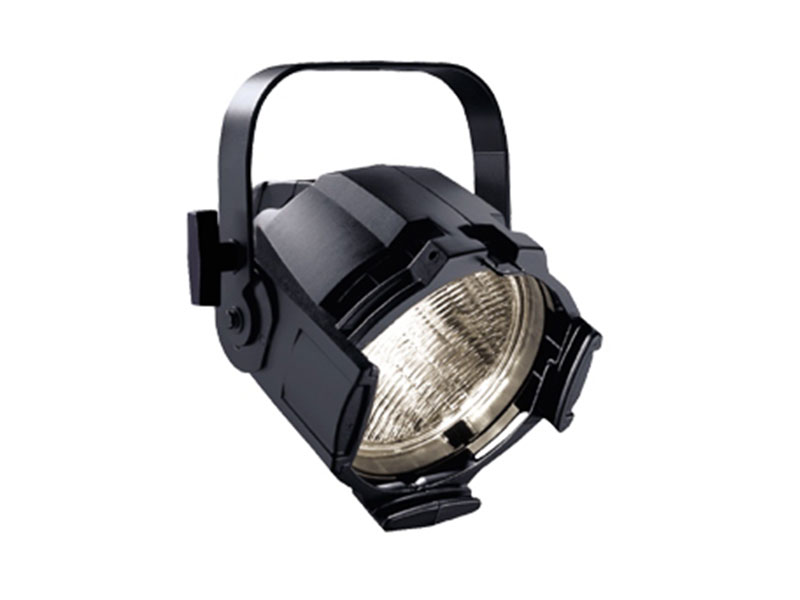

ETC Source Four PAR

Description

ETC Source Four Par stand out of the luminaire crowd with their rugged die-cast aluminium construction and acclaimed Source Four optical technology. Superior brightness and energy savings. This lantern aims to deliver a smooth even field of light.

PAR comes with one of four optional snap-in lenses that mount in a cool, rotating ring. That also means no more reaching into a hot can with cracked porcelain sockets. And when you need a new lamp, just use your stock of Source Four HPLs. The Source Four PAR’s compact design means more units can be mounted on a pipe or fit into a truck. Combined with reductions in power and cable requirements, Source Four PARs are perfect for touring.

ETC Source Four PAR Specifications

PHYSICAL

• Rugged die-cast aluminum construction
• Tool free access to the reflector and lens
• High-impact, thermally insulated knobs
• Sealed reflector housing
• Reflector temperature control through integral heat sink fins
• Gel frame holders with two accessory slots
• Top-mounted, gel-frame retainer
• Steel yoke with two mounting positions
• Positive locking yoke clutch
• IP20 rated for indoor, dry location use

ELECTRICAL

• 115-240V, 50/60Hz
• High-temperature three-conductor 36” leads in a glass fiber outer sleeve
• Supports ETC Dimmer Doubling technology

LAMP

• Compact tungsten filament contained in a krypton/xenon- filled quartz envelope (see table for suitable lamp types)
• 750W maximum
• Patented filament geometry makes for extremely efficient
• light collection and transmission
• Integral die-cast aluminum heat sink lamp base

LENSES

• Four heat resistant, molded borosilicate glass lenses available: Very Narrow Spot (VNSP), Narrow Spot (NSP), Medium Flood (MFL) and Wide Flood (WFL).
• Round beam for VNSP and NSP, oblong beam shape for MFL and WFL
• Optional Extra Wide Flood lens (XWFL) also available
• Tool free lens changing
• Thermally insulated lens ring

OPTICAL

• Modified parabolic and multifaceted reflector
• Computer designed reflector facets molded directly into heat sink casting, finished with an enhanced aluminum deposition
• process, and polished for maximum reflectance

If you would like to view more products like the above, please Click Here

Manufacturer: ETC
